Kiln for Wood Packaging Materials (ISPM-15)

Kiln for Wood Packaging Materials

This kiln is designed for the heat treatment of pallets and wood packaging material following ISPM 15, an International Standard for Phytosanitary Measures developed by the International Plant Protection Convention (IPPC). It ensures wood packaging materials are free from quarantine pests and diseases. According to the ISPM 15, wood packaging materials must be heated to a minimum core temperature of 56°C (132.8°F) for at least 30 minutes to eliminate pests.

ISPM-15 and IPPC Standards

For Wood Packaging Materials

Applies to solid wood packaging materials like pallets, crates, and dunnage used in international trade, including materials like coniferous softwood and non-coniferous hardwood.

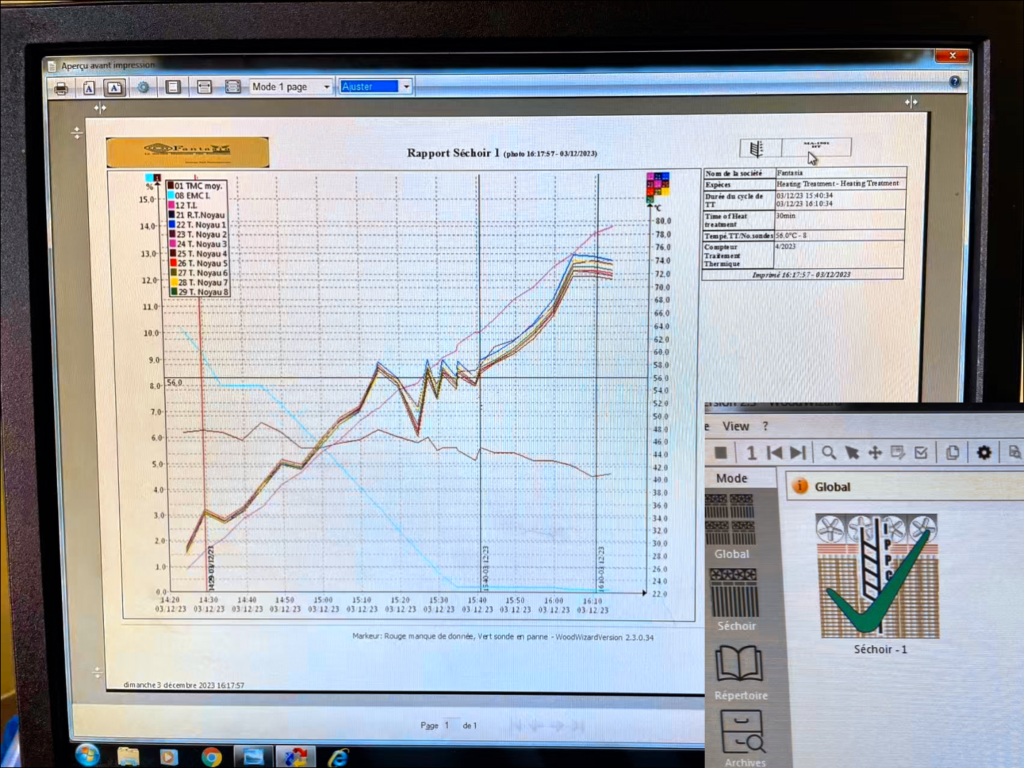

Wood Core Temperature Recording

Kiln Specification

Specification	Details
Model	BZX
Capacity	20 – 2000 m³
Maximum Temperature inside the Kiln	100 ℃
Applicable Lumber Types	Wood Packaging Materials
Loading Method	Forklift
Kiln Structure Material	Aluminum Alloy
Heating Medium	Steam / Hot water / Thermal oil / Electricity
Site Requirements	Indoor / Outdoor

Key Features

Intelligent Detection Function:

A wood core temperature detection module is added to conventional wood drying equipment. The system can automatically record (print) data like time, wood core temperature, kiln temperature and humidity (or wet – bulb temperature), and wood moisture content. It then transmits the collected data to a remote computer (commodity inspection department), enabling remote monitoring of the packaging box heat treatment process.

Robust Construction

Kiln Walls and body constructed with 3003 rust proof Al alloy and 6063 Al alloy. Heat exchanger pipes & all connections used ASTM 304 stainless steel.

Easy maintenance & assembly

Ferrous – free,

Corrosion – resistant

Long – term stability

Drying Technology

Over the past decades, TECH has been constantly refining the wood drying process. We’ve developed specific drying schedules for different wood species, which has remarkably enhanced the quality of dried wood.

Kiln for Wood Packaging Materials Specification

Specification	Details
Model	BZX
Capacity	10 – 200 m³
Maximum Temperature Inside the Kiln	100 ℃ (212℉)
Applicable Lumber Types	Wood Packaging Materials
Loading Method	Forklift
Kiln Structure Material	3003+6063 Aluminum Alloy
Heating Medium	Steam / Hot Water / Thermal Oil/ Electricity
Site Requirements	Indoor / Outdoor

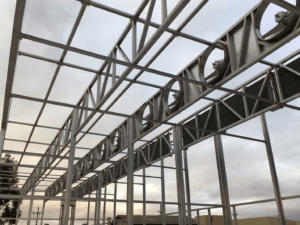

Kiln Structure

✅ Frame Construction: Entire frame constructed from 6063 aluminum alloy, secured with 304 stainless steel fasteners for structural integrity and corrosion resistance.

✅ Chamber Wall Design: The interior and exterior surfaces of the wall, roof, and door panels featured with 3003 rust-proof aluminum alloy sheets, fastened with 304 stainless steel screws. Precision-engineered edges eliminate water traps. Optional 304 Stainless steel interior available

✅ Durability & Maintenance: Ferrous-free design ensures 20+ years of corrosion resistance and structural stability. User-friendly kiln design facilitates easy maintenance and upkeep.

Kiln for ISPM-15 Heat Treatment

✅ ISPM-15 Compliant Drying Kiln – Enhanced on a Proven Conventional Kiln Design

Real-Time Core Temperature Monitoring – Ensures accurate treatment of wood packaging material.
Automated Data Logging – Tracks temperature, humidity, duration, and moisture content throughout the cycle.
Remote Data Transmission – Instantly sends treatment records to inspection or quarantine authorities.
Full Traceability & Audit-Ready – Meets global export regulations with verifiable compliance history.
Perfect for Export Packaging – Tailored for wooden pallets, crates, and other materials requiring ISPM-15 certification.
