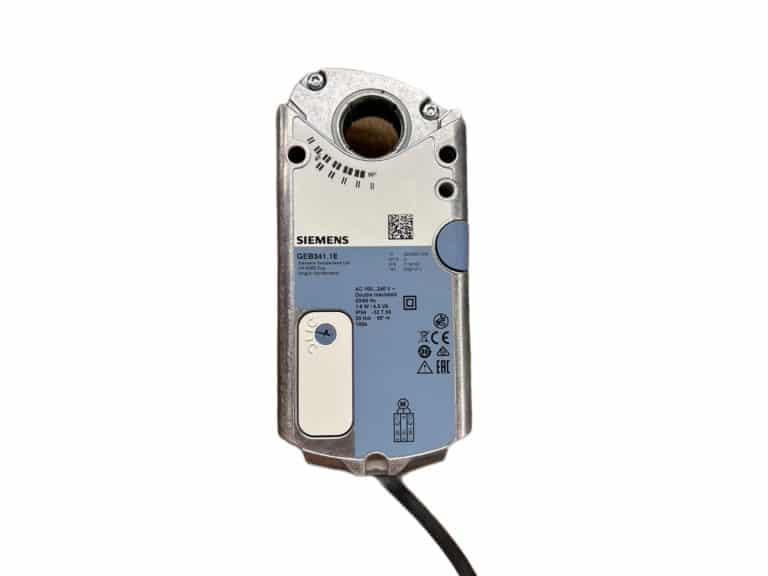

Siemens Electric Damper Actuator

The dehumidification system of the TECH drying kiln adopts the Siemens electric damper actuator GEB341.1E, which can precisely control the damper and has the characteristics of small size, reliable performance, and long service life.

Technical Parameters:

Model: GEB341.1E
Torque: 20 Nm
Dimensions (Width × Height × Depth): 81 × 192 × 63 mm
Control Type: Three – position control
Damper Outlet Area: 3 ㎡ and above
Angle Rotation: 90°
Positioning Time: 150 s
Operating Voltage: AC230V

Siemens GEB341.1E Electric On - off and Analog - regulated Damper Actuator

Type: Electric damper actuator
Function: Provides analog – regulated functions, usually supporting 0 – 10V DC or 4 – 20mA signals to adjust the opening of the damper.
Power Supply: Usually 24V AC/DC / 230V AC
Drive Method: Electric drive, suitable for dampers of different specifications
Application Areas: Widely used in HVAC systems, building automation, and various industrial control systems

Features:

High – precision Control: Provides precise damper opening adjustment, suitable for systems with strict requirements for air flow, temperature, or pressure.
Versatility: May support different control signals and operation modes, increasing the flexibility of applications.
Robust Design: The design has high durability and is suitable for long – term stable operation.

Softwood Drying Kiln

The TECH Softwood Fast Drying Kiln is specifically designed for easy to dry softwoods, such as Radiata Pine. It operates within a temperature range of 100 – 120℃. This temperature setting is carefully determined to effectively remove moisture from softwood, ensuring high quality drying and offering users a more time and cost effective solution.
